Column Diameter 250 mm

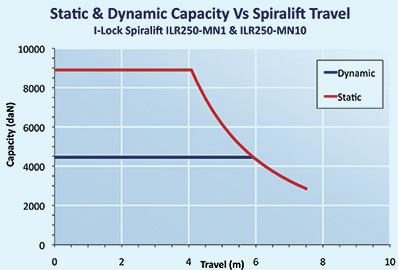

Maximum Lifting Capacity up to 4 450 daN *
Maximum Static Capacity up to 8 900 daN *
Maximum travel 7.5 m
Maximum Speed 0.203 m/s
Closed height for travel of
1.2 m 507 mm
3 m 550 mm
6 m 678 mm
Lift Travel per Revolution (pitch) 108 mm

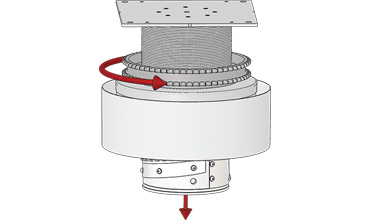

Drive Double Single Chain
Main Sprocket & Chain
or Main Gear Chain ANSI #60 62 teeth
Total System Lifting
Efficiency, EL up to 78 %
Column Material (bands) Stainless Steel 301
