Column Diameter 250 mm

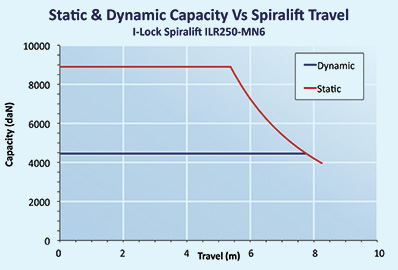

Maximum Lifting Capacity up to 4450 daN *
Maximum Static Capacity up to 8900 daN *
Maximum travel 8.25 m
Maximum Speed up to 0.305 m/s **
Closed height for travel of
1.2 m 517 mm
3 m 560 mm
6 m 688 mm
8.25 m 785 mm
Lift Travel per Revolution (pitch) 108 mm
Drive Double Single Chain
Main Sprocket & Chain
or Main Gear Chain ANSI #80 50 teeth
Total System Lifting
Efficiency, EL Up to 78%
Column Material (bands) Stainless Steel 301
